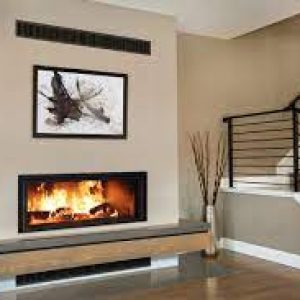

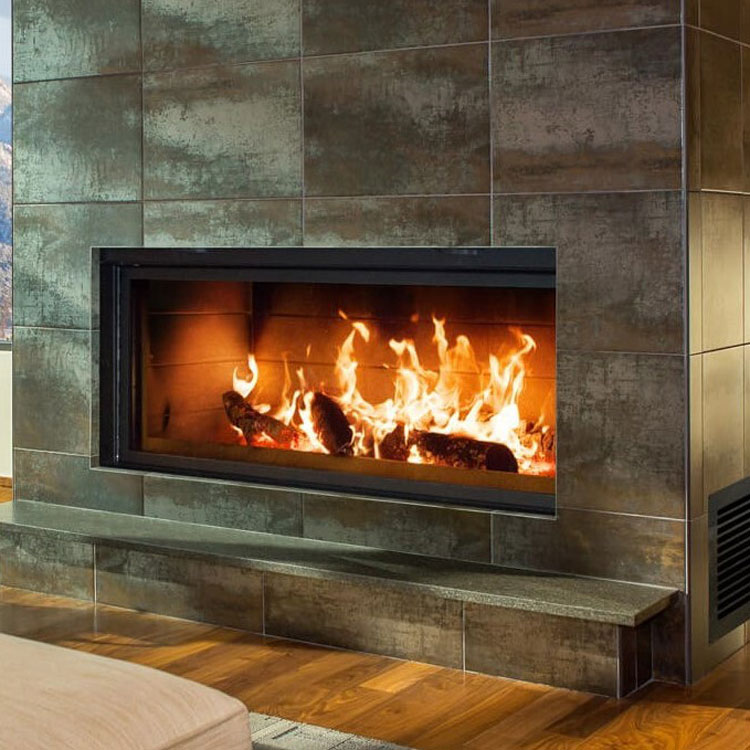

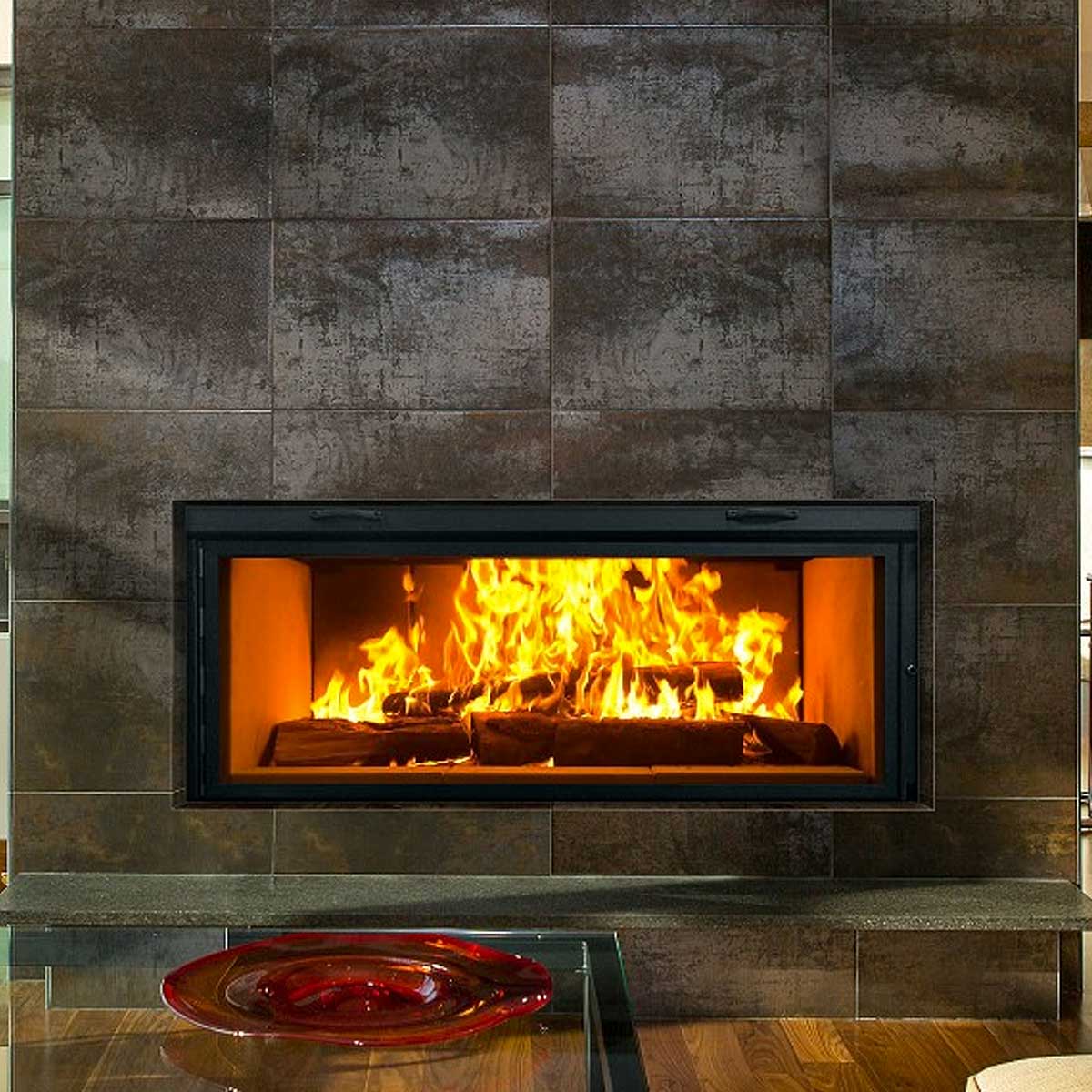

RSF Renaissance Linear 50 Wood Fireplace

The RSF Renaissance Fireplaces, strives to introduce people to wood burning in new and exciting ways and to preserve the nostalgia of a crackling fire that consumers expect. The wall-to-wall fire of the RL50 is an experience unlike any other. With a glass viewing width of 46” and only 15 ½” tall, the RL50 is both stylish and modern. The door and screen lift effortlessly and disappear when they are not in use.

It’s common for the glass of wood-burning fireplaces to become blackened after regular use, but the RL50 has an air wash system to keep it clean. You’ll enjoy a clear view of the flames even after multiple fires. The Linear 50 is not designed to be used as a heat source but incorporates a heat redistribution system (HRS) to help beat the chill. You can choose to heat the room with the fireplace or draw the heat away to another location. The Linear 50 is not designed to be used as a heat source but incorporates a heat redistribution system (HRS) to help beat the chill. You can choose to heat the room with the fireplace or draw the heat away to another location. Preventing heat loss from your home is just as important as heating it. Renaissance fireplace doors seal tightly to prevent warm air from escaping up your chimney. Our optional Chimney Top Damper completely seals off the top of the chimney making it ideal for passive homes. With a glass viewing width of 46” and only 15 ½” tall, the RL50 is both stylish and modern. The door and screen lift effortlessly and disappear when they are not in use.

Specs

Outside Dimensions – 70 3/8″W x 66 3/8″H x 28 3/4″D

Shipping Weight – 1,131 lbs

Shipping Crate Size – 70 1/4″W x 69 1/2″H x 32 1/2″D

Door Opening Size – 50 7/16″W x 19 7/8″H

Glass Viewing Size – 45 7/8″W x 15 3/8″H

Firebox Dimensions – 44 1/2″W x 14″D

Chimney Size – 10″ RIS

Minimum Chimney Height – 12’ (more with elbows)

Maximum Fuel Load – 4-5 medium logs

Maximum Log Length – 24” maximum

Gas Log Provision – YES
