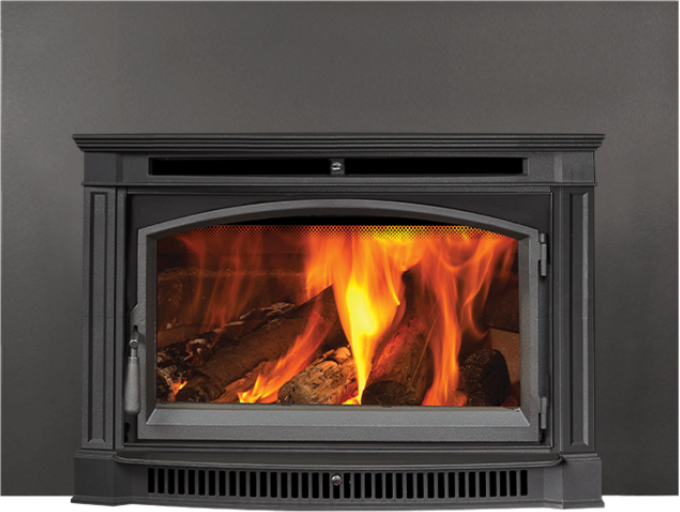

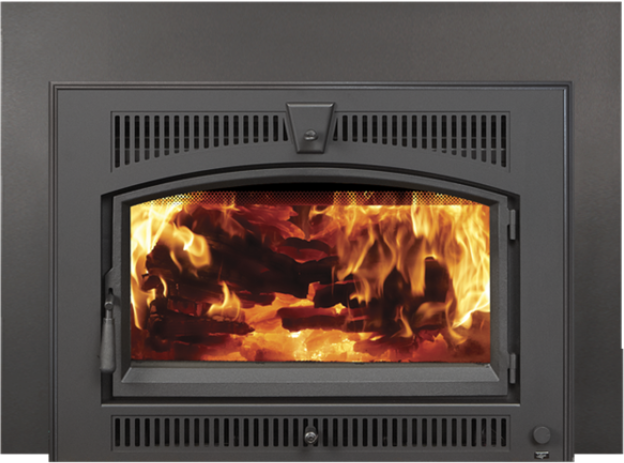

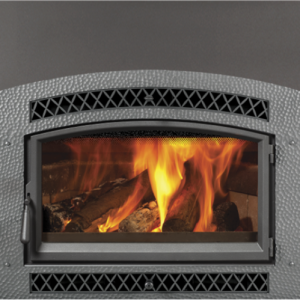

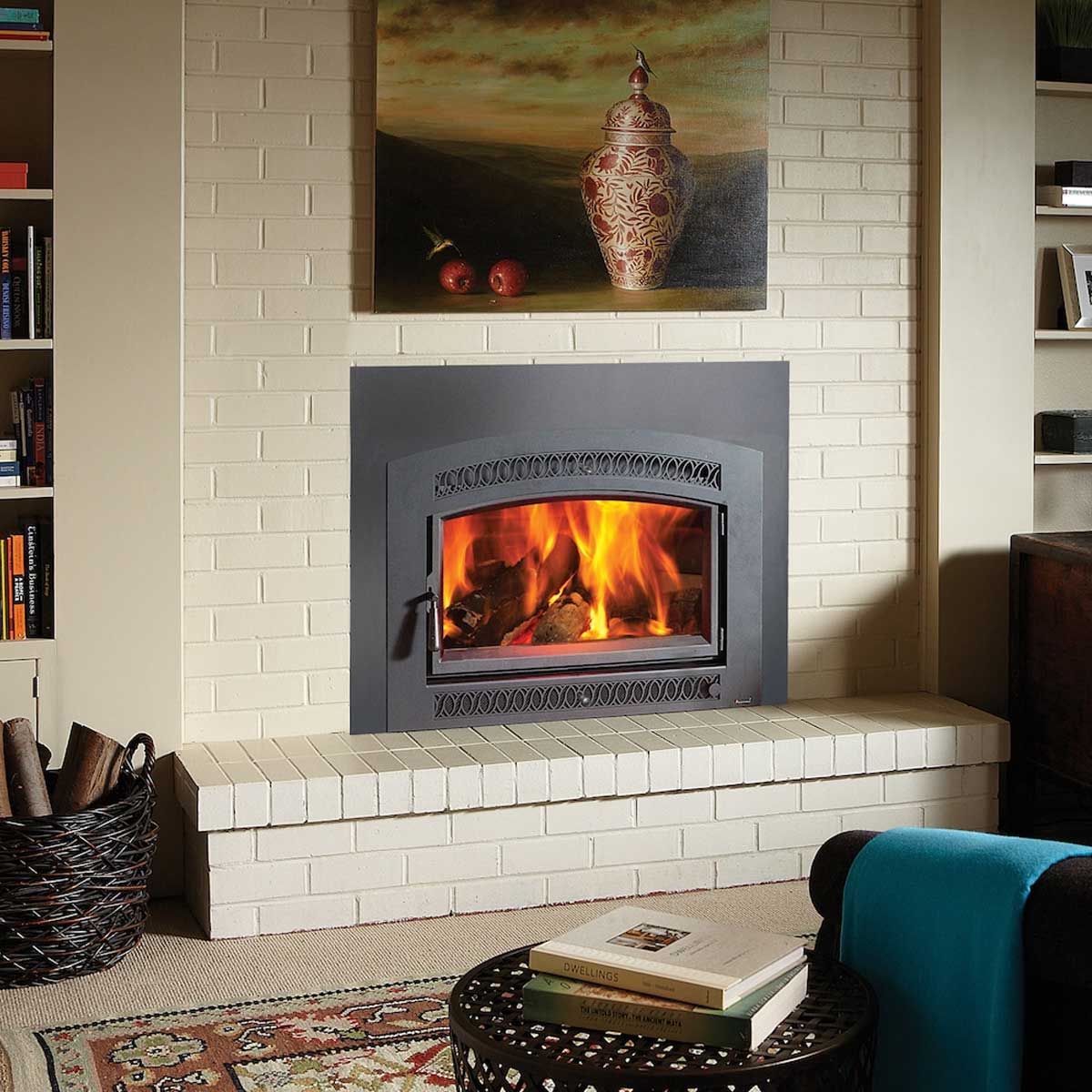

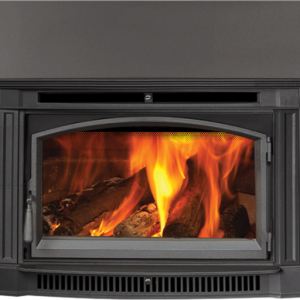

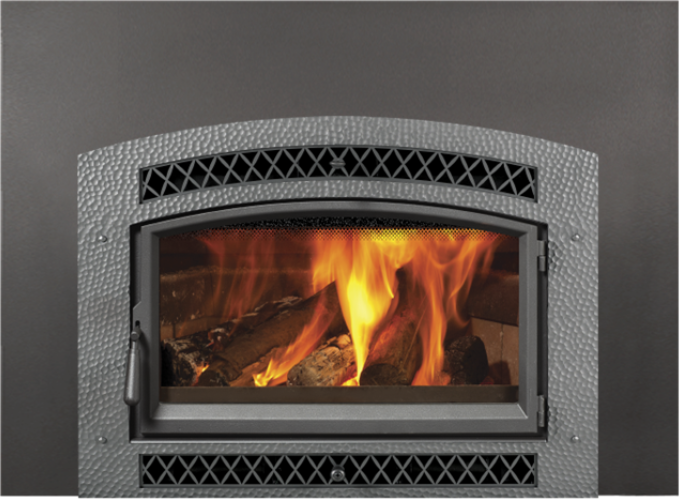

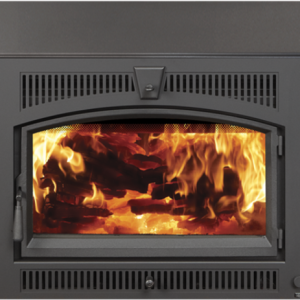

Fireplace Xtrordinair Large Flush Wood Arched NexGen-Fyre™ Insert

When compared to any other large wood insert on the market, you will find that our Large Flush Wood Arched NexGen-Fyre Insert offers you the best choice in looks, construction and performance. NexGen-Fyre technology and premium quality materials combined with beauty and optimum performance bring you a wood insert that will heat your home for years to come!

The Large Flush Wood NexGen-Fyre Insert is available with the GreenStart® patent-pending ignition system for the modern wood burner; just load your wood and push a button! We’ve completely eliminated slow, cracked open door startups and laboring over fickle newspaper.

NexGen-Fyre takes our non-catalytic wood burning technology to the next level! Primary and secondary combustion are harnessed to create the ultimate blended combustion system that produces beautiful, balanced fires with double the BTU range, up to 50% greater heat output, and longer burn times than any other non-catalytic technology.

This large fireplace insert features the exclusive clean burning NexGen-Fyre Technology. NexGen-Fyre Technology is a fusion of known wood combustion (kiln fired firebrick, stainless baffles, and stainless steel secondary combustion air tubes, with the addition of our catalytic assist technology. Primary combustion burn occurs in the firebox with our secondary tubes re-burning gases before they leave the firebox, we are then making those same gases pass through a catalytic combustor leaving virtually no smoke to exit the appliance. The net result of this is a super clean burning insert, with emissions of just .58 grams per hour. Also with that reduction in emissions comes almost zero carbon monoxide remaining through all burn cycles. We are taking clean burning to an unmatched level of efficiency. Our overall efficiency for this Large Flush Wood NexGen-Fyre Insert is over 80%. What this means is more heat from less wood, and greater savings on your heating cost! This insert will heat up to 2,500 sq feet, with up to 10 hour burn times.

The large fire box is 3.0 cubic feet in size and will accommodate a 24” log. We have engineered this Large Hybrid Flush Insert so that it will indeed fit into many fireplace openings and is approved for both masonry and zero clearance fireplaces and also features a bypass damper for smoke free firestarting and reloading.

A large viewing area is accomplished by having a huge single cast iron door, giving the unit 319 sq. inches of glass. The glass stays clean from the unobstructed air wash.

The Large Hybrid Wood Insert comes standard with twin 90 CFM convection fans to increase heat output and efficiency. The rheostat controlling fan speed is located on the chosen face plate, not on the surround panel. And the power cord can be routed to either side of the appliance or hard wired inside the fireplace with our optional insert wiring kit.


Heating Capacity: Up to 2,500 Sq. Ft.

Maximum Burn Time: Up to 12 Hrs.

Log Length: 24”

Maximum BTUs: Up to 66,736 (Burn on high)

Real World BTUs: EPA tests to determine BTU output are achieved with a single load of wood at each burn rate. At home, you are likely to add more wood to your insert to maintain your desired comfort level. By the simple process of loading your insert with additional wood, you could achieve up to a 20% higher heat output than established during EPA testing.

Emissions: 1.7 Grams/Hr. (Cord Wood)

LHV Overall Efficiency: * Up to 79%

HHV Overall Efficiency:* Up to 73%

Firebox: 3.0 Cubic Ft.

Glass Viewing Area: 24-1/2” W x 13” H (307 Sq. In. Arch, 319 Rect.)

*Overall efficiency as tested using B-415.1 using Cord Wood. LHV = Low Heat Value, HHV = High Heat Value.


• Insert Wiring Kit


Large Flush Wood NEXGEN-FYRE™ Fireplace Insert Brochure
