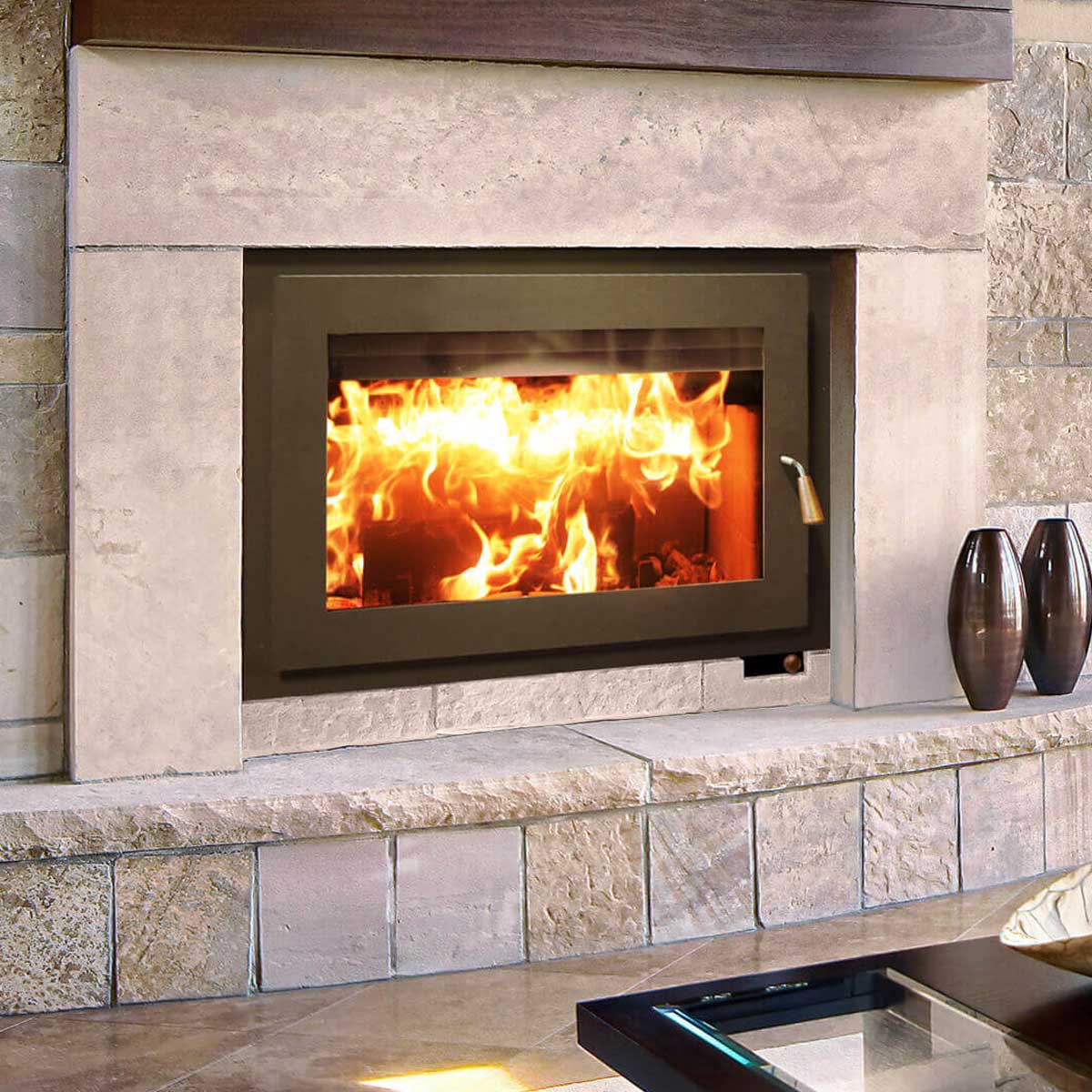

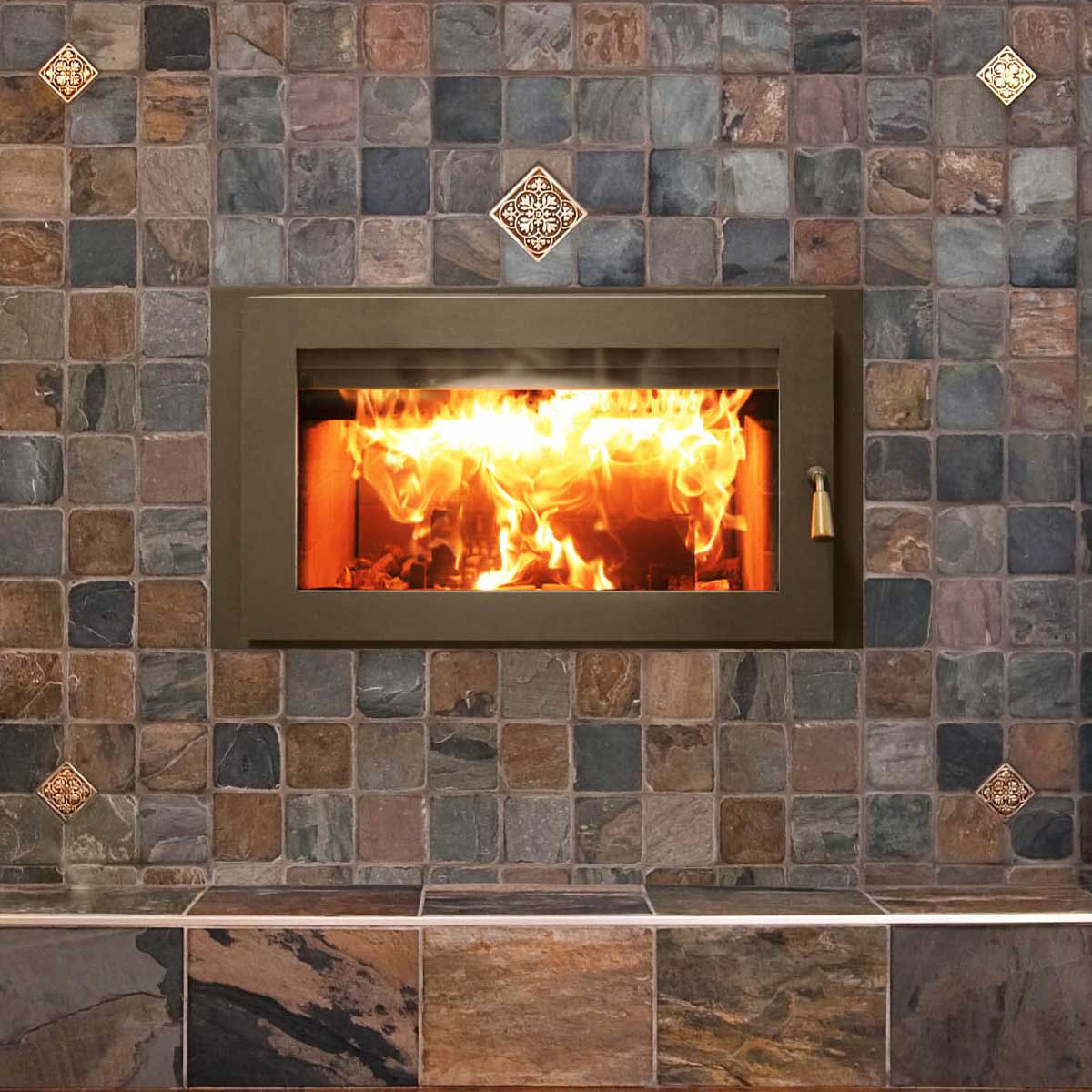

RSF Focus 320 Wood Fireplace

The RSF Focus 320 wood fireplace has a contemporary design and impressive heat output. The Focus 320 high-efficiency factory-built fireplace burns with a unique flame that is utterly mesmerizing and the contemporary style door offers the largest viewing space possible. The Focus 320 produces enough heat for the average house, burns overnight, and has low emissions. In addition, the RSF Central Heating Options are compatible, which allows the heat to be spread uniformly throughout the home.

  • Large 2.6 cubic foot firebox.
  • EPA Phase II certified.
  • Molded firebrick lining.
  • Mobile home approved.
  • Takes 20” logs.
  • Can be installed into a masonry chimney using an RSF adapter and a UL/ULC listed stainless steel chimney liner.
  • Can be connected to a central heating system.

Specs

Outside Dimensions 43″W X 44 1/4″H X 24″D
Weight (ship wt add 70 lb) 500 lb
Firewood Length 22″
Firebox Size ( 1 ) 2.6 cubic feet
BTU Output Range ( 2 ) 10,000 to 50,000
Heating Capacity ( 3 ) 1,000 to 2,000 ft2
EPA Certification note ( 6 )
Chimney 7″ Excel
Door Finish Black
Gravity Vent Kit FO-V2
Gravity Vent Damper FO-D
Electric Wall Thermostat FO-FDHC4
Heat Dump FO-HD
Internal Blower FO-FDHB5-N
Central Heating Blower 635 cfm FO-FDHB6-1
Central Heating Tee FO-T
Zone Heating Option FO-FDHCZ1 & FO-FDHCZ2
Rock Retainer Kit FO-KN
Clean Facing FO-F2 + FO-V2 (2X)
Inline Fan FO-CIF
Gas Log Provision ( 4 ) NO
Masonry Chimney Option FO-FDM7
Firescreen N/A
Outside Air ( 5 ) 4″, meets R2000
Mobile Home Approved YES
Louvers Black
